DAA - Worst case comparison

These are simulated results of difficulty adjustment algorithms cw-144, k-1 and wt-144.

A set of 1500 scenarios are simulated on all algorithms. The 10 worst performing scenarios, based on stddev of block time, for each algorithm are kept. The algorithms are then plotted on each others worst case scenarios. Duplicate scenarios are removed (leaving 20 out of 30).

To reproduce a scenario, run simulator with the seed in the title of each plot.

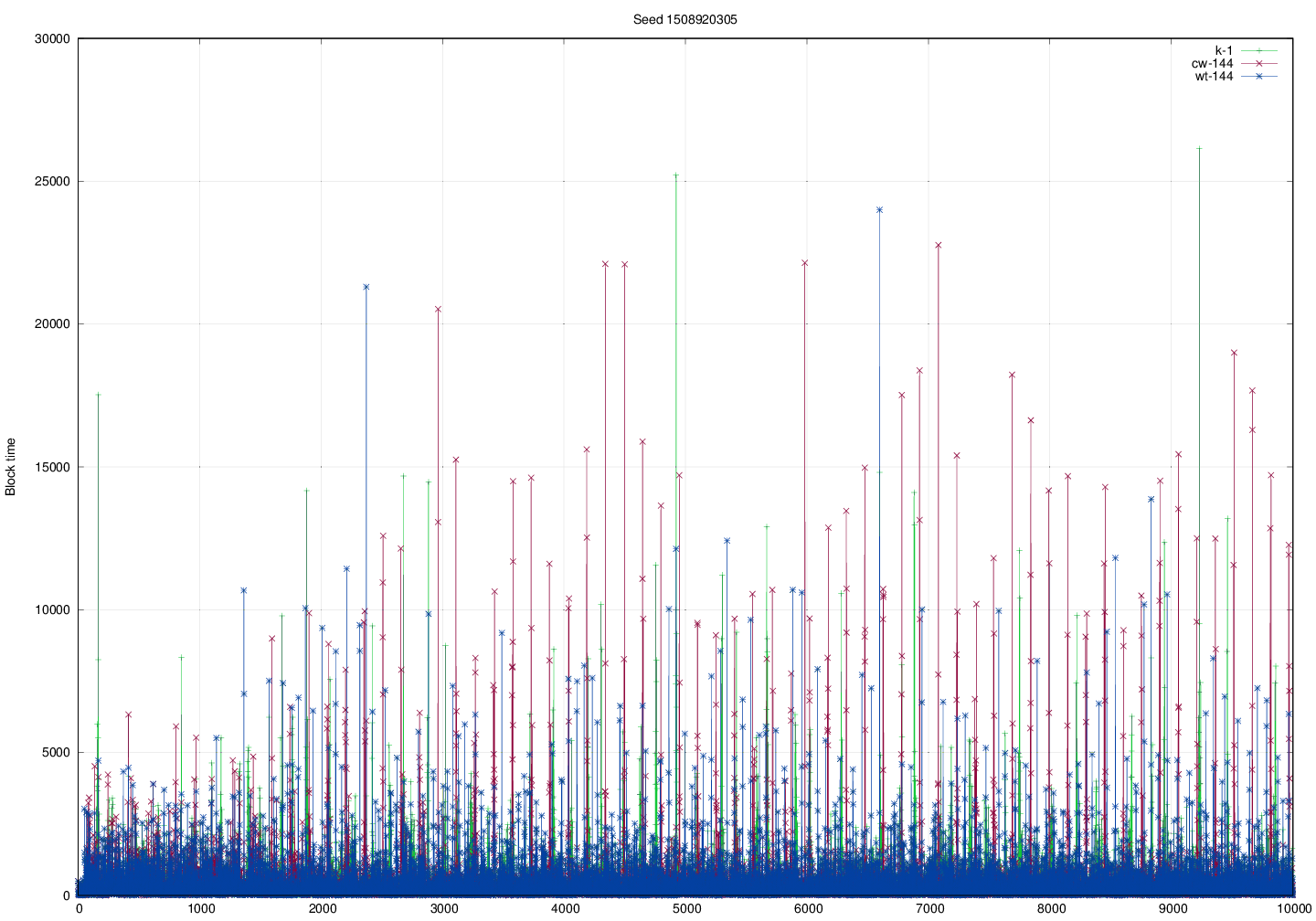

plot

AlgoStddevMeanMedian
cw144 1647.40 607.23 214
k1 1002.18 591.86 307
wt144 988.92 609.70 314

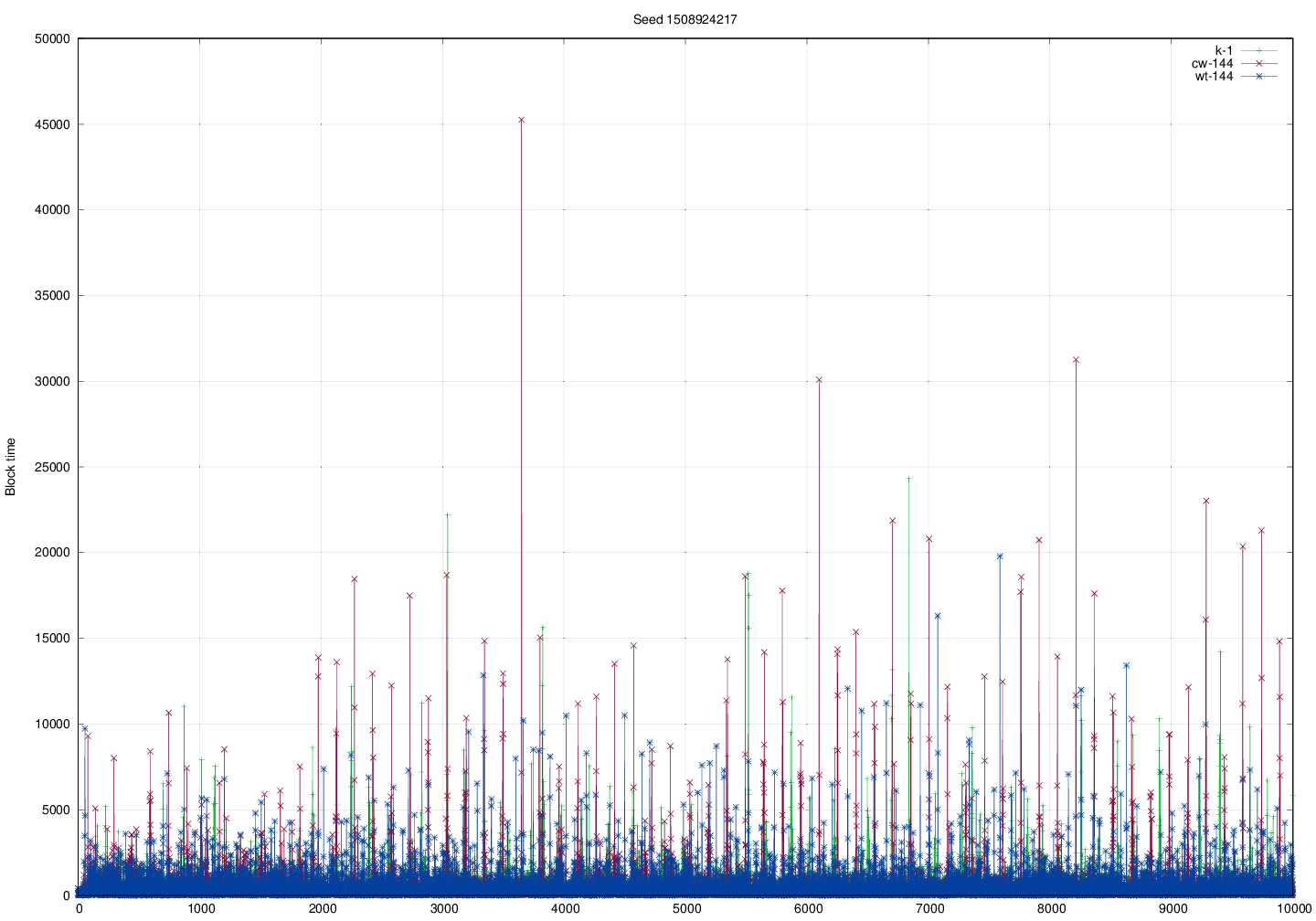

plot

AlgoStddevMeanMedian
cw144 1636.70 604.78 228
k1 995.41 594.91 322
wt144 896.76 607.48 339

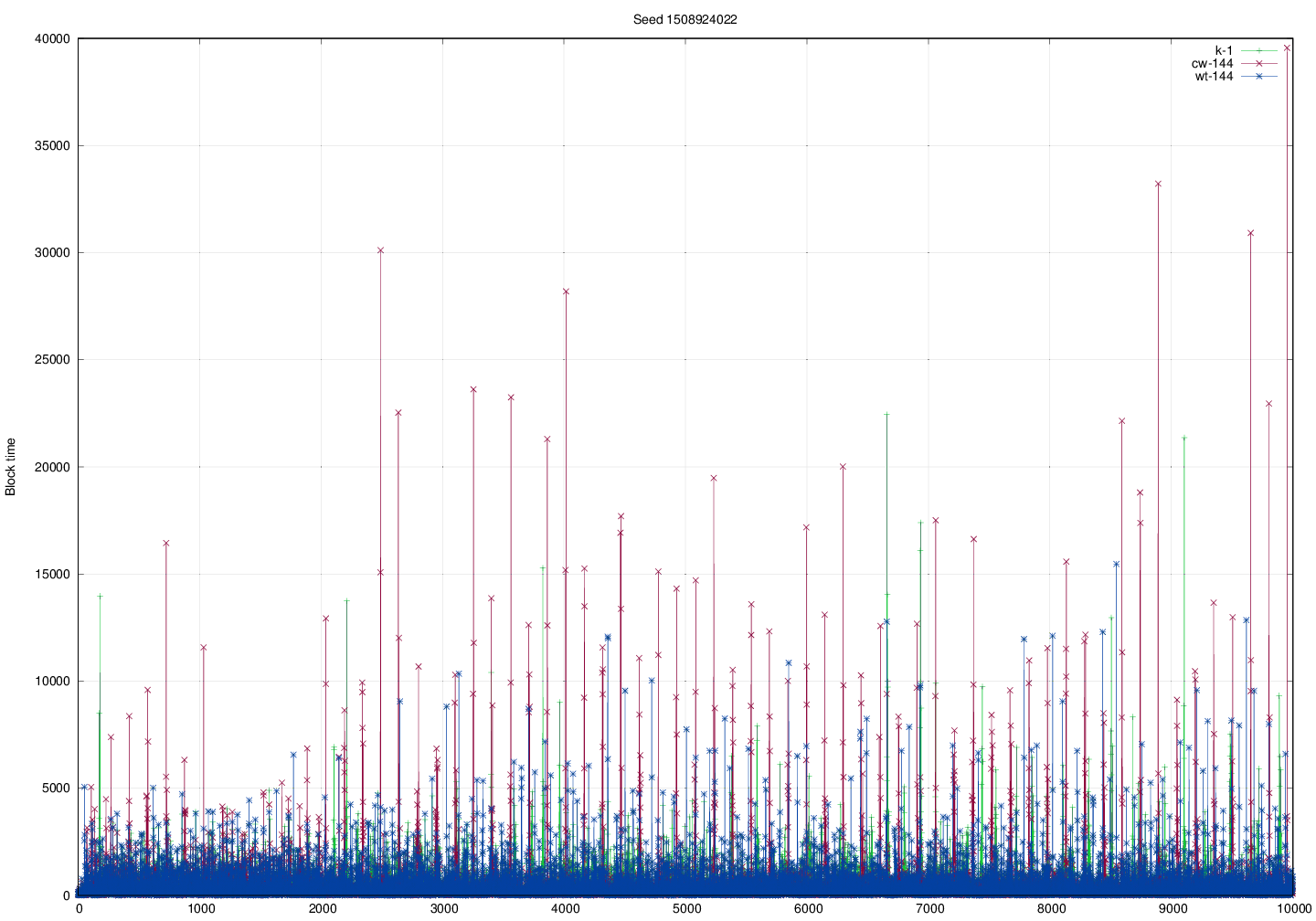

plot

AlgoStddevMeanMedian
cw144 1654.50 603.44 230
k1 985.66 594.98 314
wt144 952.43 608.88 322

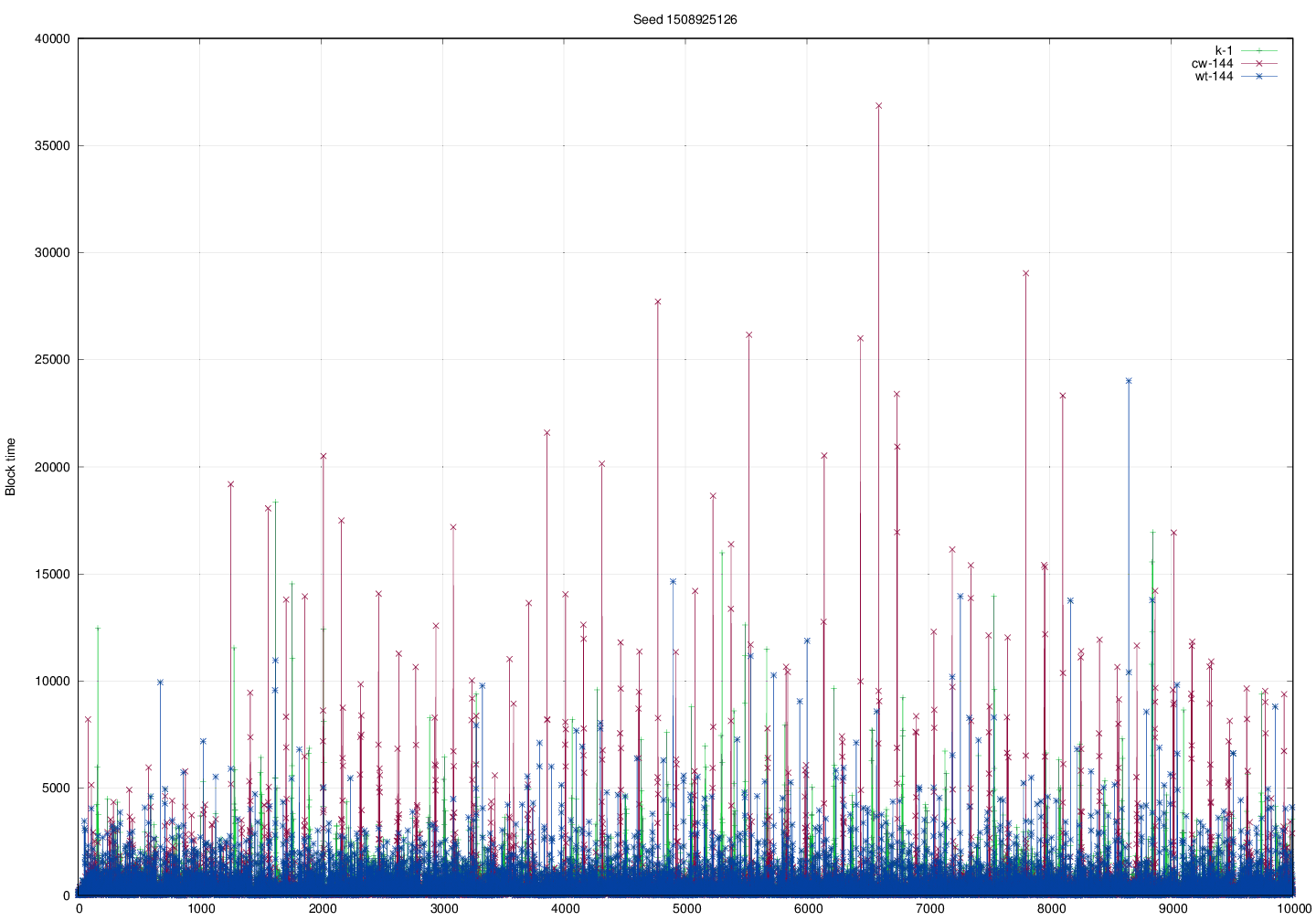

plot

AlgoStddevMeanMedian
cw144 1791.52 606.83 217
k1 920.04 585.49 321
wt144 1038.24 610.53 326

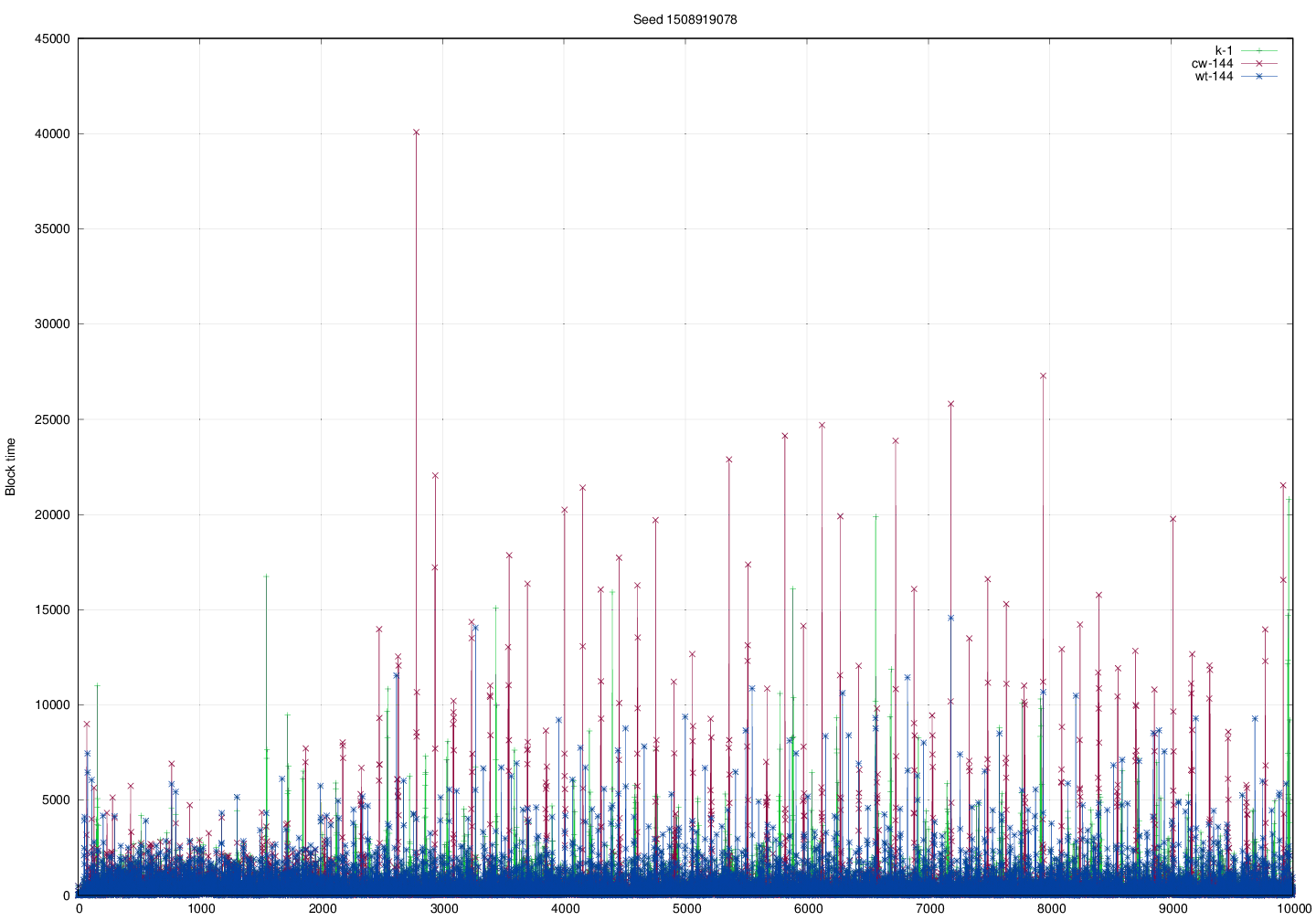

plot

AlgoStddevMeanMedian
cw144 1468.75 604.58 244
k1 1063.63 593.26 301
wt144 994.37 608.96 324

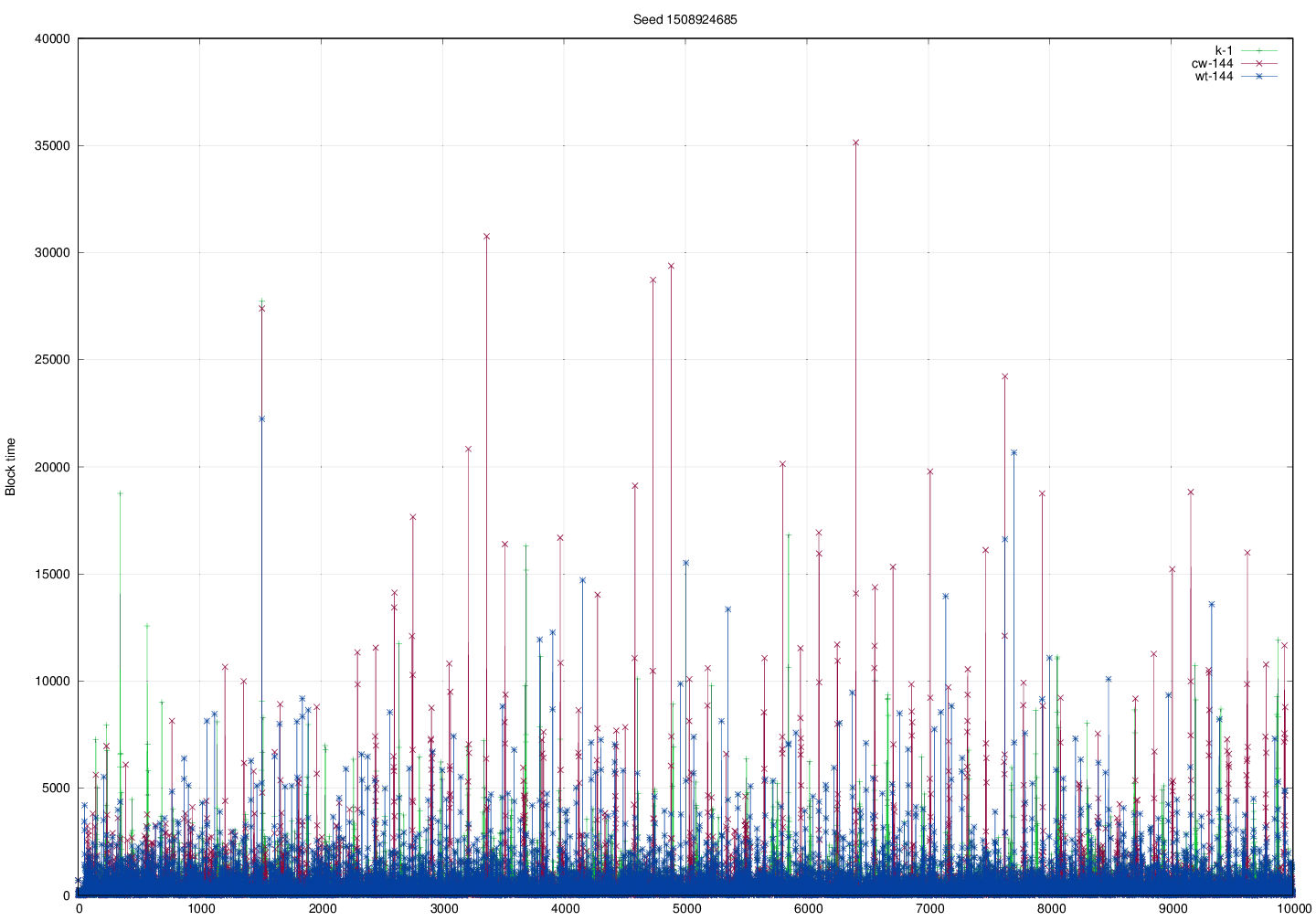

plot

AlgoStddevMeanMedian
cw144 1553.34 605.64 217
k1 1027.75 592.04 302
wt144 969.19 609.53 317

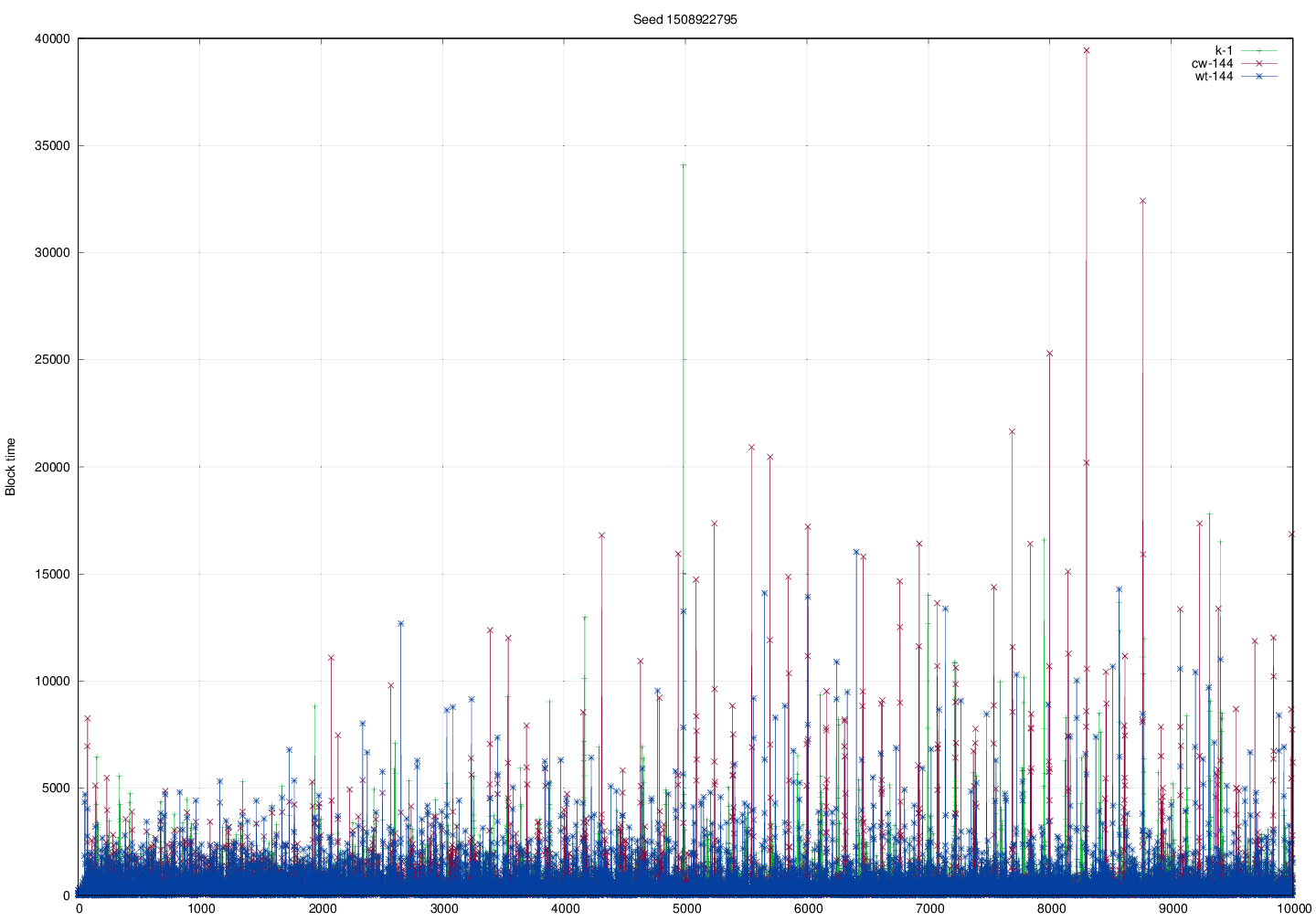

plot

AlgoStddevMeanMedian
cw144 1525.87 601.24 232
k1 1057.59 594.92 305
wt144 982.91 608.43 337

plot

AlgoStddevMeanMedian
cw144 1544.52 601.75 238
k1 945.63 590.56 319
wt144 967.04 609.54 327

plot

AlgoStddevMeanMedian
cw144 1583.02 601.75 232
k1 909.82 595.47 323
wt144 975.48 609.63 326.5

plot

AlgoStddevMeanMedian
cw144 1685.84 607.98 204
k1 945.59 592.22 307
wt144 941.46 610.69 329

plot

AlgoStddevMeanMedian
cw144 1411.09 606.64 260.5
k1 1027.96 599.73 320
wt144 966.31 610.27 327

plot

AlgoStddevMeanMedian
cw144 1672.37 606.61 210
k1 922.10 599.79 332.5
wt144 837.61 607.34 342

plot

AlgoStddevMeanMedian
cw144 1593.07 605.70 236
k1 977.98 592.79 319
wt144 918.47 607.15 335

plot

AlgoStddevMeanMedian
cw144 1405.12 603.07 252
k1 915.56 587.69 319
wt144 978.70 608.51 329

plot

AlgoStddevMeanMedian
cw144 1655.99 605.07 220
k1 941.49 599.49 329
wt144 934.47 607.88 327

plot

AlgoStddevMeanMedian
cw144 1553.69 601.85 244
k1 1046.90 590.83 310
wt144 966.58 609.49 324

plot

AlgoStddevMeanMedian
cw144 1567.74 605.10 225
k1 935.27 587.53 323
wt144 1023.17 609.50 333

plot

AlgoStddevMeanMedian
cw144 1716.55 608.10 216
k1 1024.86 588.12 304
wt144 955.14 609.17 322

plot

AlgoStddevMeanMedian
cw144 1511.36 604.90 242
k1 1022.36 595.88 312
wt144 1016.59 610.09 319

plot

AlgoStddevMeanMedian
cw144 1603.82 605.26 225
k1 986.53 600.10 312
wt144 933.84 609.17 334
